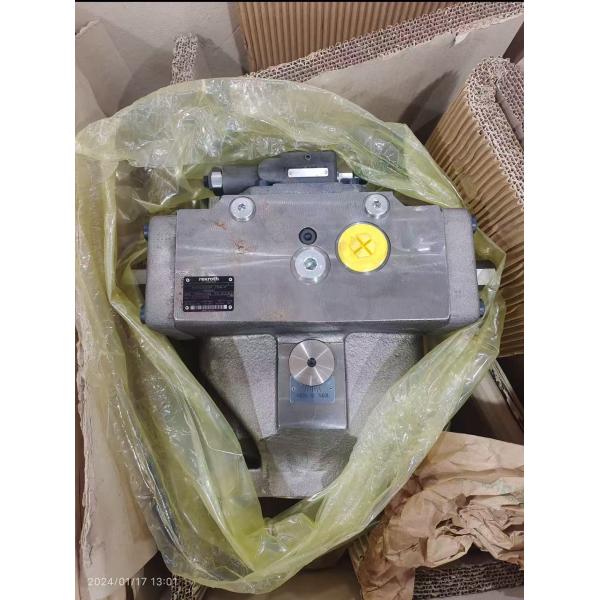

Rexroth A4VSO125 Piston Pump - German High-Pressure Variable
A4VSO180DR/30R-PPB13N00 A4VSO125EO2/30R-VPB25N00 A4VSO125EO2/30R-VZB13N00
A4VSO125EO2/30R-PZB13N00 A4VSO125EO2/30R-VPB13N00
High-performance axial piston pump designed for demanding hydraulic appliions. German-engineered for reliability and precision in industrial environments.
| Contact | WhatsApp: +85267220981
Email: Yli97584@gmail.com |
| Model | A4VSO180DR/30R-PPB13N00 A4VSO125EO2/30R-VPB25N00 A4VSO125EO2/30R-VZB13N00 A4VSO125EO2/30R-PZB13N00 A4VSO125EO2/30R-VPB13N00 |
| Displacement | 125 |
| Warranty | 1 year |
| Brand | Rexroth |
| Control Mode | DR |
| Purpose | Hydraulic system |
| Scope of Use | Excavator, coal mining industry, ship hydraulic systems |
Product Specifiions
| Part Number | Description |
| R910914604 | AA4VSO125LR2/10L-PPB13N00 |
| R910926636 | AA4VSO125LR2/10L-PPB13N00-SO134 |
| R910949885 | AA4VSO125LR2/10L-PPB13N00-SO562 |
| R910910707 | AA4VSO125LR2/10R-PPB13K27 |
| R910919060 | AA4VSO125LR2/10R-PPB13K34 |
| R910924183 | AA4VSO125LR2/10R-PPB13K55 |
| R910904559 | AA4VSO125LR2/10R-PPB13N00 |
| R910926645 | AA4VSO125LR2/10R-PPB13N00-SO134 |
| R910949883 | AA4VSO125LR2/10R-PPB13N00-SO562 |
| R910912403 | AA4VSO125LR2/10R-PZB13N00 |
| R910921391 | AA4VSO125LR2/10R-VPB13N00 |
Frequently Asked Questions
1. What is the fundamental working principle of the A4VSO series pump?
The A4VSO series is a swashplate-type axial piston pump designed for open-circuit systems. Its flow output is proportional to the input drive speed and its displacement volume. The displacement is infinitely variable by adjusting the angle of the swashplate. It's known for its excellent suction characteristics, low noise, long service life, and high power-to-weight ratio. Multiple control options are available to meet various system requirements.
2. What are the common control methods for the A4VSO pump?
The A4VSO series offers a wide range of variable control methods. The most commonly used include:
- DR/DRG: Pressure Control (Constant Pressure)
- LR: Constant Power Control (Hyperbolic)
- EO/EO2: Electroproportional Control
Other available controls include FR (Flow Control), MA (Manual Control), EM (Electric Motor Control), HW/HM/HS/HD (Various Hydraulic Controls), and DS (Secondary Control for speed sensing).
3. How does the DR Pressure Control (Pressure Cut-Off) work?
The DR control maintains a constant system pressure by changing the swashplate angle. When the system pressure reaches the spring-set value on the DR valve, the control mechanism acts to reduce the pump's displacement, delivering only the flow required to maintain the set pressure. This functionality is sometimes referred to as "Pressure Cut-Off" in some pump literature. It's important to note that a system safety valve is still essential because the DR control's response is relatively slow compared to sudden pressure shocks; the safety valve handles transient pressure spikes.
4. What is the difference between DRG and DP control types?
Both DRG and DP are forms of constant pressure control, but they are designed for different appliions:
- DRG (Remote Pressure Control): Allows the pressure setpoint for the pump to be adjusted remotely via an external pressure control valve.
- DP (Multi-Pump Parallel Pressure Control): Specifically designed for systems where multiple pumps work in parallel. It contains an additional element (a variable orifice, valve 5) that mechanically links to the swangle. This design automatically compensates for differences between pumps, ensuring they share the load equally and operate at the same swashplate angle when working together at the set pressure. The DP control has a larger control deviation (~6.5 bar) compared to DRG (~3 bar).
5. Why might multiple A4VSO DR pumps in parallel cause system vibration?
When multiple pumps with standard DR controls are set to the same pressure and run in parallel, slight inherent differences in their response characteristics and pressure settings can cause them to not reduce displacement (cut off) at exactly the same time and rate. This lack of synchronization can lead to interactions between the pumps, resulting in pressure fluctuations and potentially causing severe pipeline vibration.
6. What are the key specifiions of the A4VSO series?
- Common Displacement Specifiions (ml/rev): 40, 71, 125, 180, 250, 355, 500, 750
- Nominal Pressure: 350 bar
- Peak Pressure: 400 bar
- Bearing: Features a specially designed, long-life, high-precision full roller bearing
- Shaft: Through-shaft design allows for mounting additional pumps to form a multi-pump group
